Small desk-top Vertical Electric Two Roll Mill
Pro PST‑EBR‑2

CE Certification Logo CE Certification


Updated

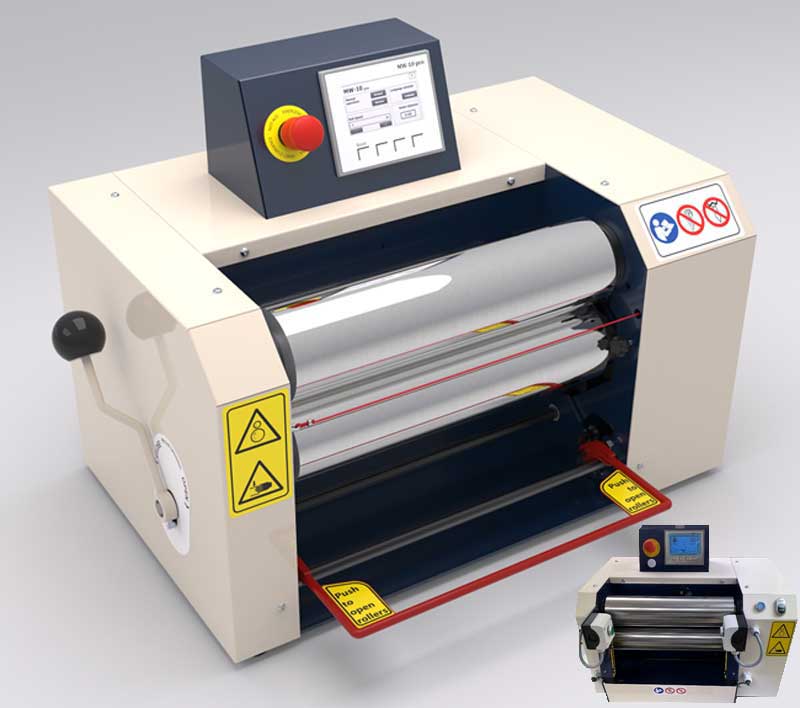

Pro desk-top - PST-EBR-2 equipped with some special features, including: lighting behind the roller opening, touch screen control and a digital thickness gauge.

The machine has forward and reverse speeds for hand use with a safety wire.
A unique safety release bar to meet CE marking.
The machine is set up for forward and reverse manually.
Forward and reverse jog.
Foot pedal action forward and reverse.
Width of Steel, Chrome plated Rollers = 400 mm
Adjustable thickness form 0.5 mm to 10 mm
Lifting point incorporated for ease of installation.

Specification:
Size of machine.
Full length = 630 mm
Roller length = 400 mm
Roller diameter = 100 mm
Depth = 555 mm (including the connectors on the back side and the red handle on the front side in a normal working position)
Width = 685 mm (excluding roller gap lever)
Height, Base Unit = 530 mm (including hmi housing and leveller feet in standard conditions)
Weight = (approx. 140 Kg)

Electric Power Supply.
Available in 110 volts and 220/240 V
Power Consumption 500 Watts

Pro Desk-top Electric Roll Mill

Pro Desk-top Electric Roll Mill
For Milling and Calendering 2 Part Silicone.
