Two Roll Mill PST‑MW‑10‑PRO

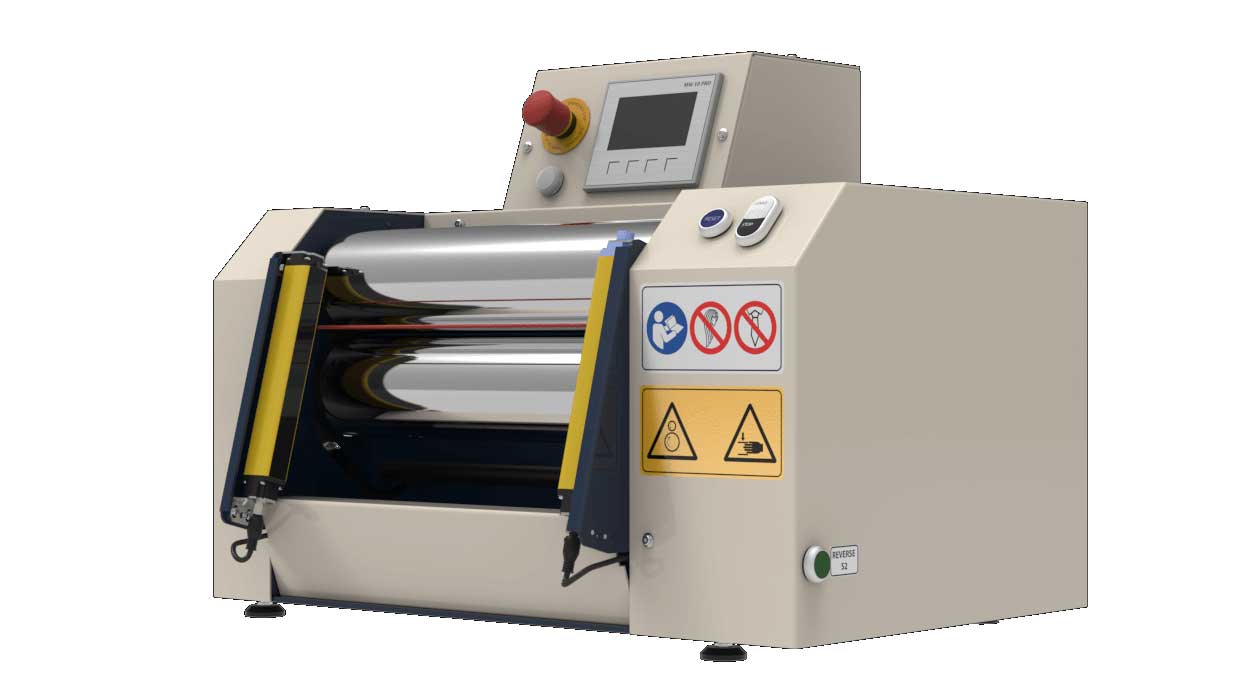

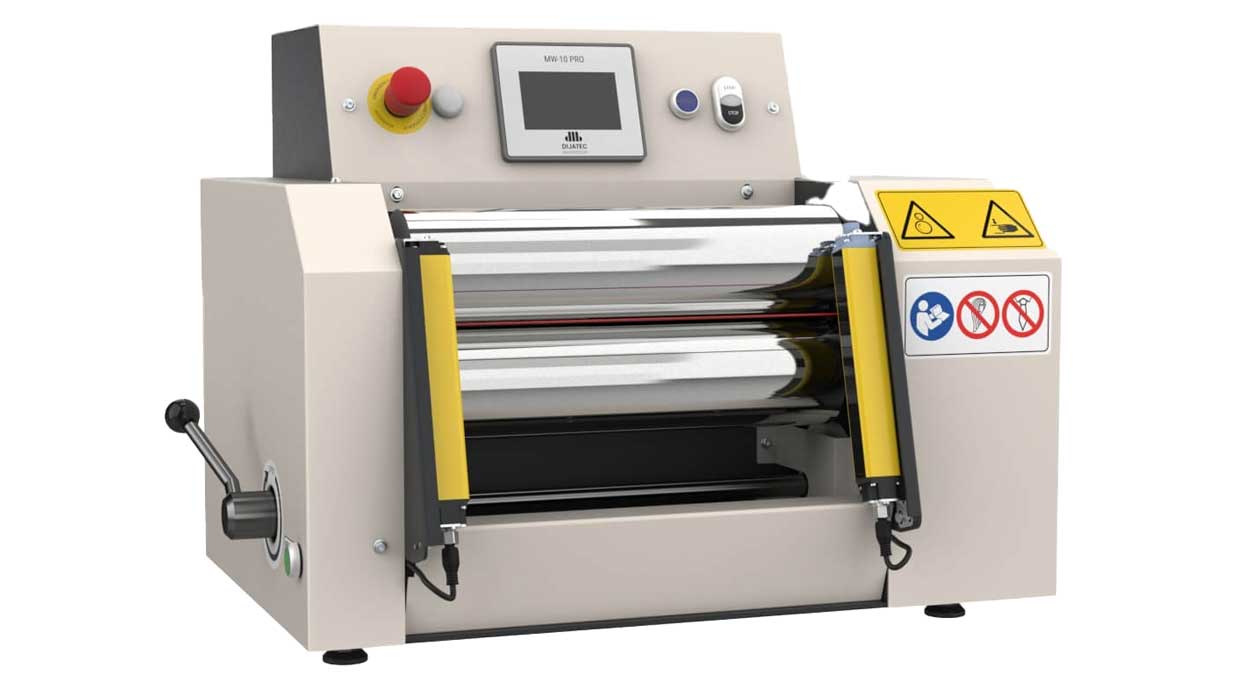

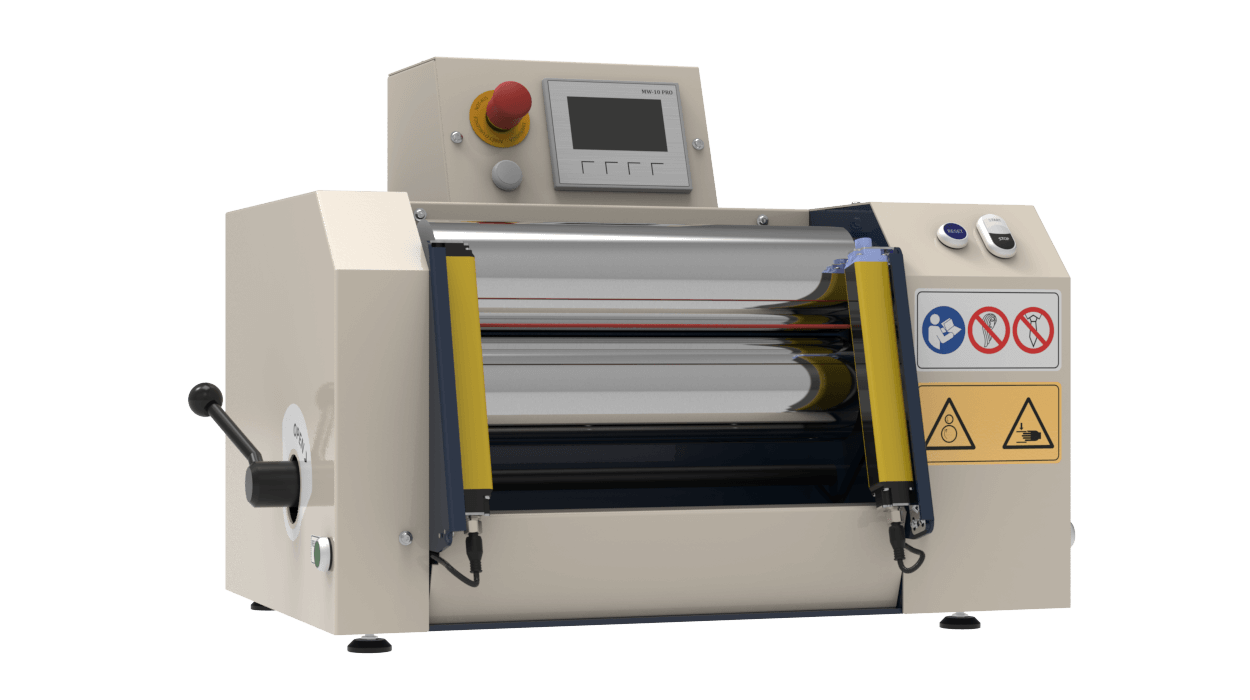

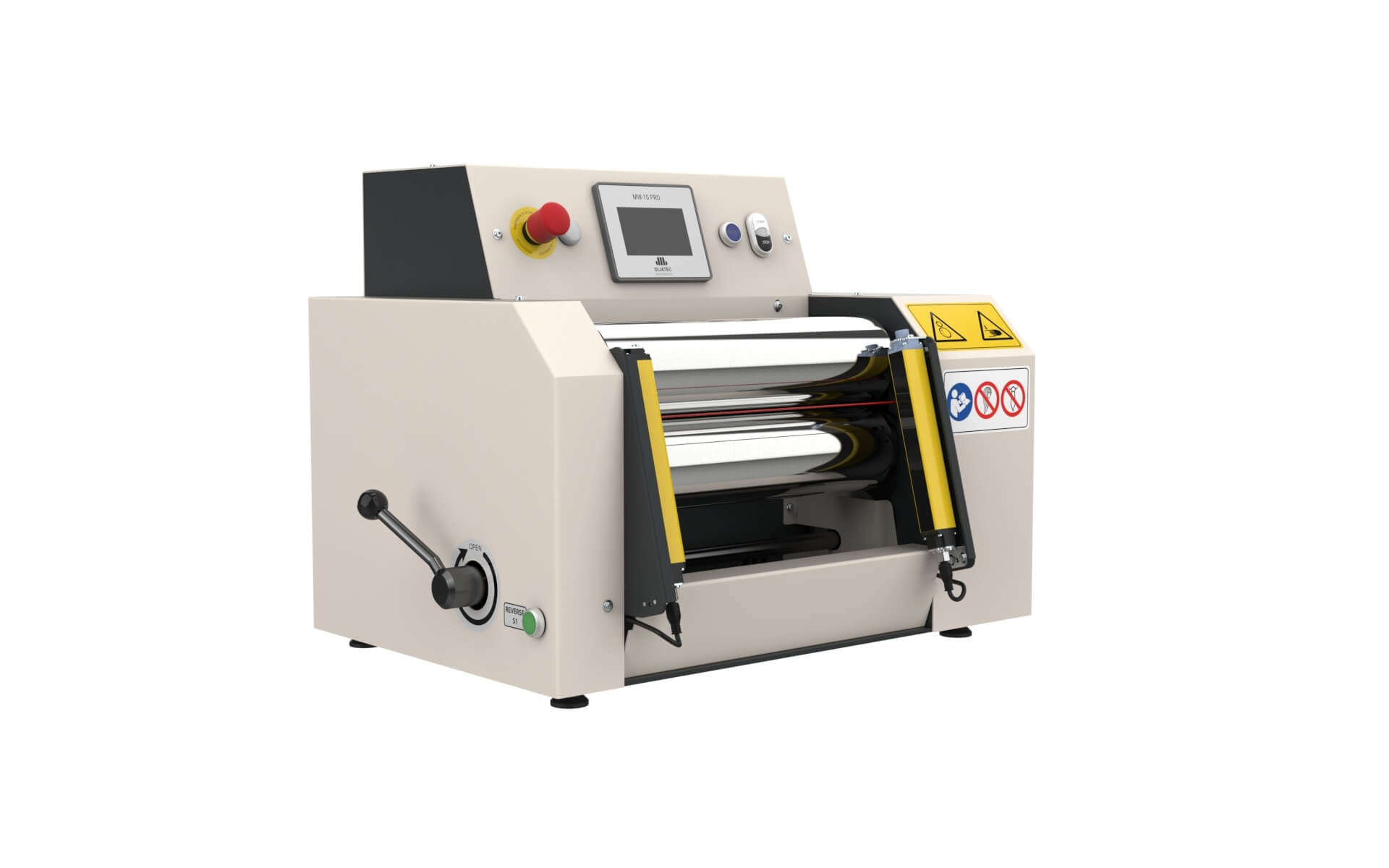

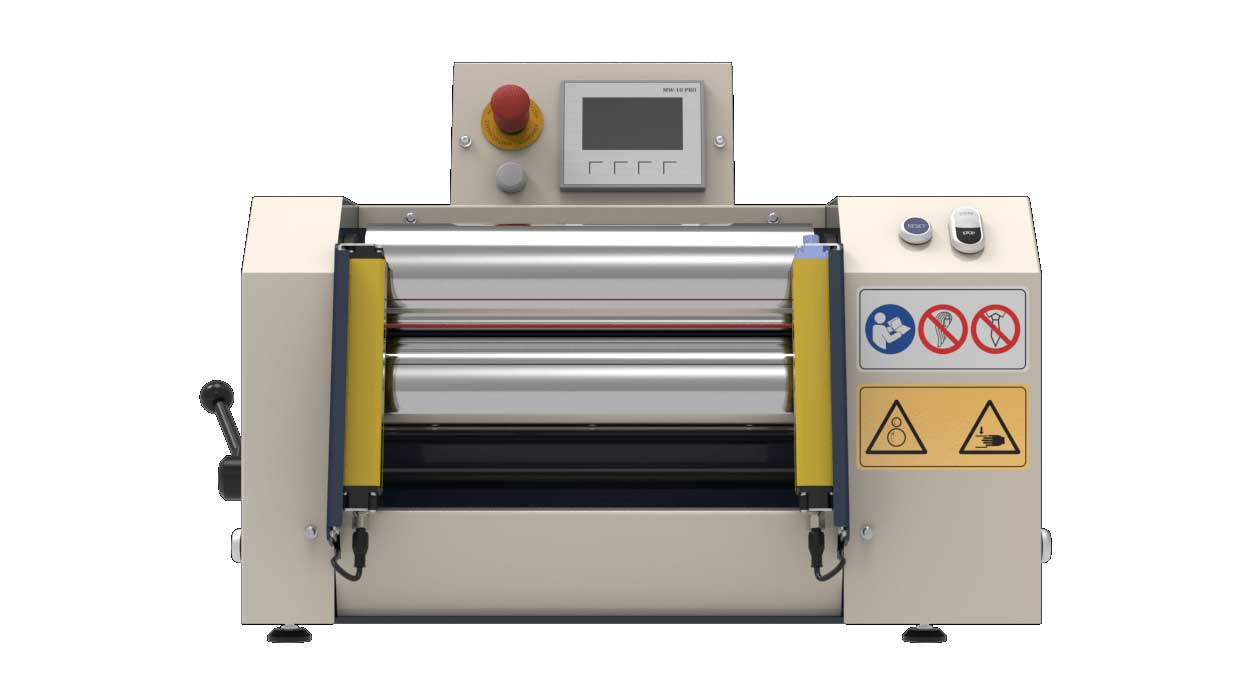

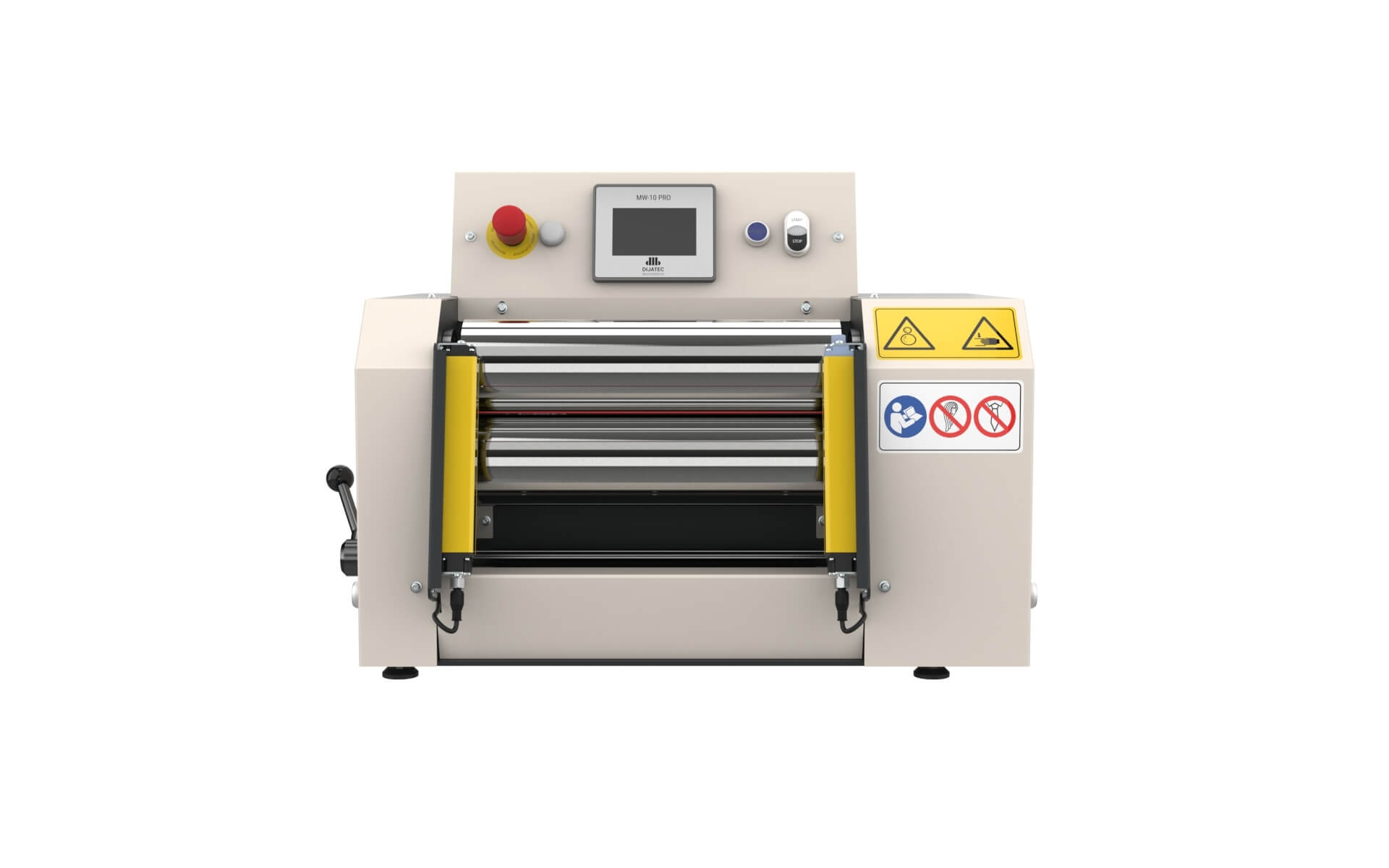

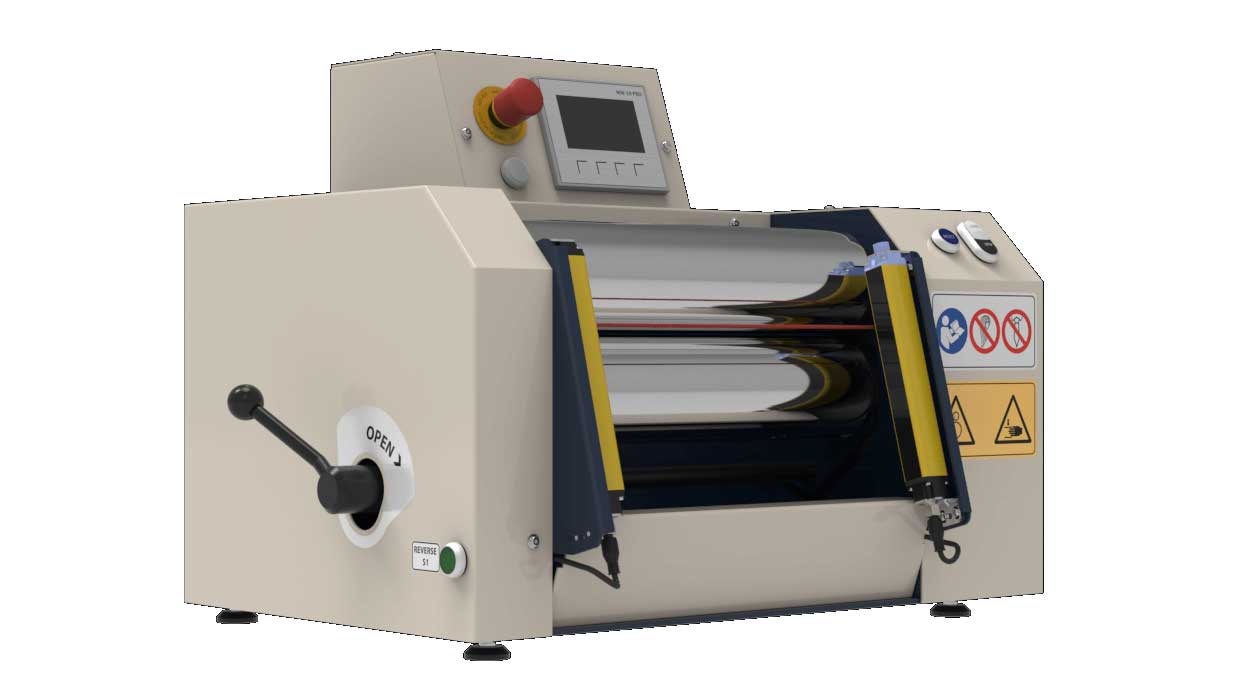

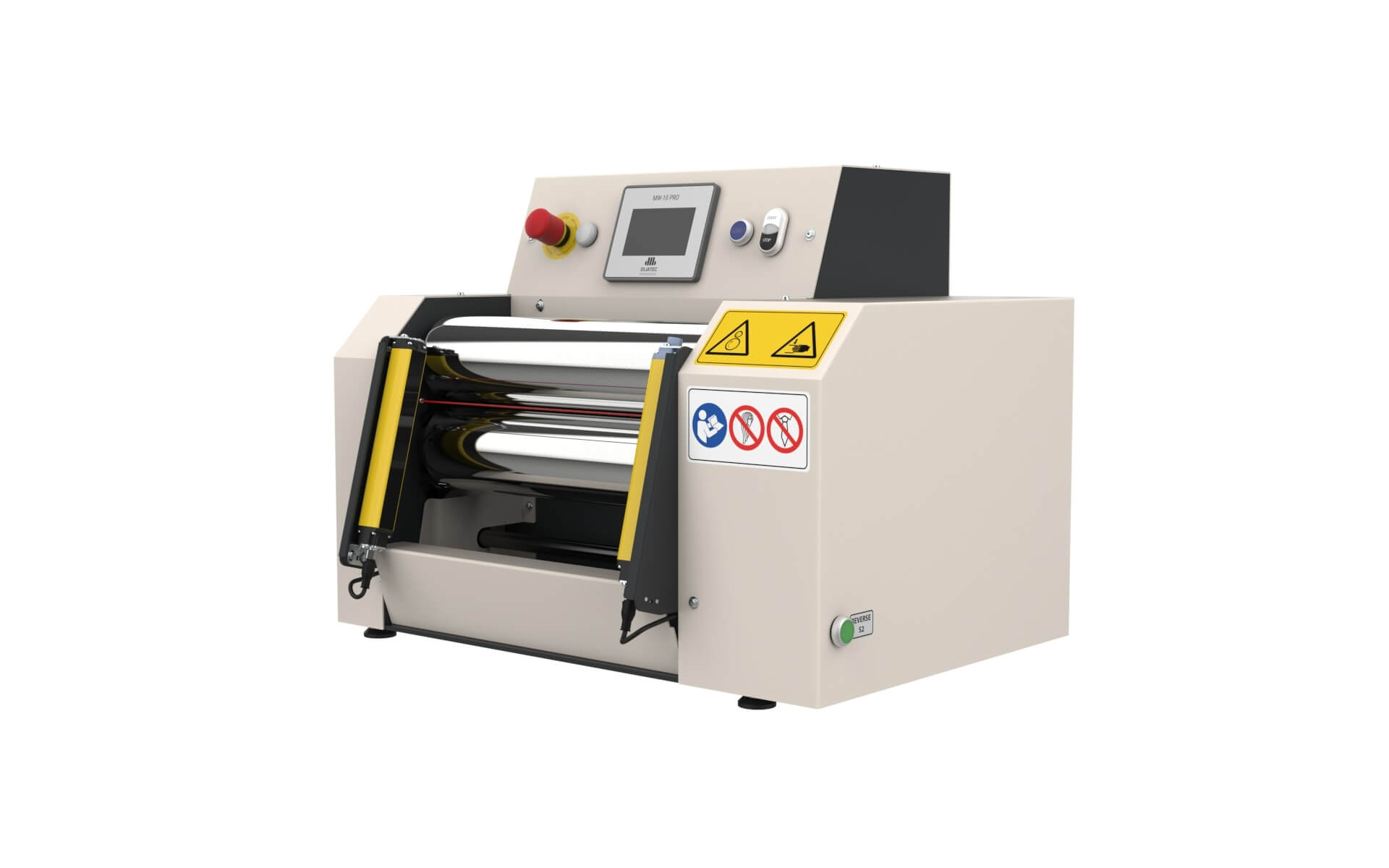

Electric Operated Vertical Roll Mill PST‑MW‑10‑PRO
Bench top two roll mill for professionals
Introducing our small electric bench-top silicone roller, meticulously designed for professional users who demand precision and reliability in processing their HCR silicones or other polymers. This compact yet powerful mill has a mixing capacity of up to 500 grams (15 shore to 80 Shore A, HCR silicone), providing a versatile solution for a wide range of materials.
Safety
Ensuring optimal safety through the dual-guarded roller opening, this machine is equipped with a light curtain and emergency stop cable. This robust combination not only guarantees maximum safety but also ensures uninterrupted and efficient operation, minimizing potential risks.
Technical specifications
- Roller diameter: 100 mm
- Roller width: 400 mm
- Roller material: chromed steel
- Rolling gap
min/max: 0,1 / 15 mm - Machine weight: 170 kg
- Measurements:
D x W x H:
550 x 716* x 540 mm
* Without handle
Electrical specifications
- 230 Volt, 1 Ph. + N + PE
- Power consumption: 0,5 kW
- Nominal current:
2,5 A (@ 230 V)
Colours
- Frame: RAL 5026
(dark blue metallic) - Body panels: RAL 9001 (cream white)
Delivery includes
- Machine
- Foot pedal
- Lifting hook
- Instruction manual
- Calibrating tool
Safety features
- Combined roller opening guarding by using light curtain and emergency stop cable
- Emergency stop button
- Reverse operation via two hand control
- Machine running LED
Other features
- HMI control panel for easy operation
- Lighting behind roller opening
- Digital milling thickness gauge
Mixing capacity
- Up to 500 grams of
15 to 80 Shore
A material
Blending Materials
- Medical Silicones
- Silicones for Space
- Defence Industrial Silicones
VersaSil³ Medical HCR’s
Medical Class VI HCR’s
PST‑MW‑10‑PRO
PDF Brochure
