PST MW‑20
Height Adjustable Electric Two Roll Mill

CE Certification Logo CE Certification


For the mixing of HCR, silicones etc. All ductile polymers that cannot be mixed in a mixer may be mixed in this two roll mill. This big machine is capable of mixing up to 1.25 kg of material depending on the hardness. This machine has been developed to be able to work both standing or sitting. This machine offers the option of mixing large quantities of material in a standing position as well as colouring small amounts of material when sitting. The large space under the bottom roll offers a wide degree of freedom to the operator around the mixing rolls. This machine will be delivered with a desired safety device. All controls are 'hold to run'.



QUALITY CHROME FINISH

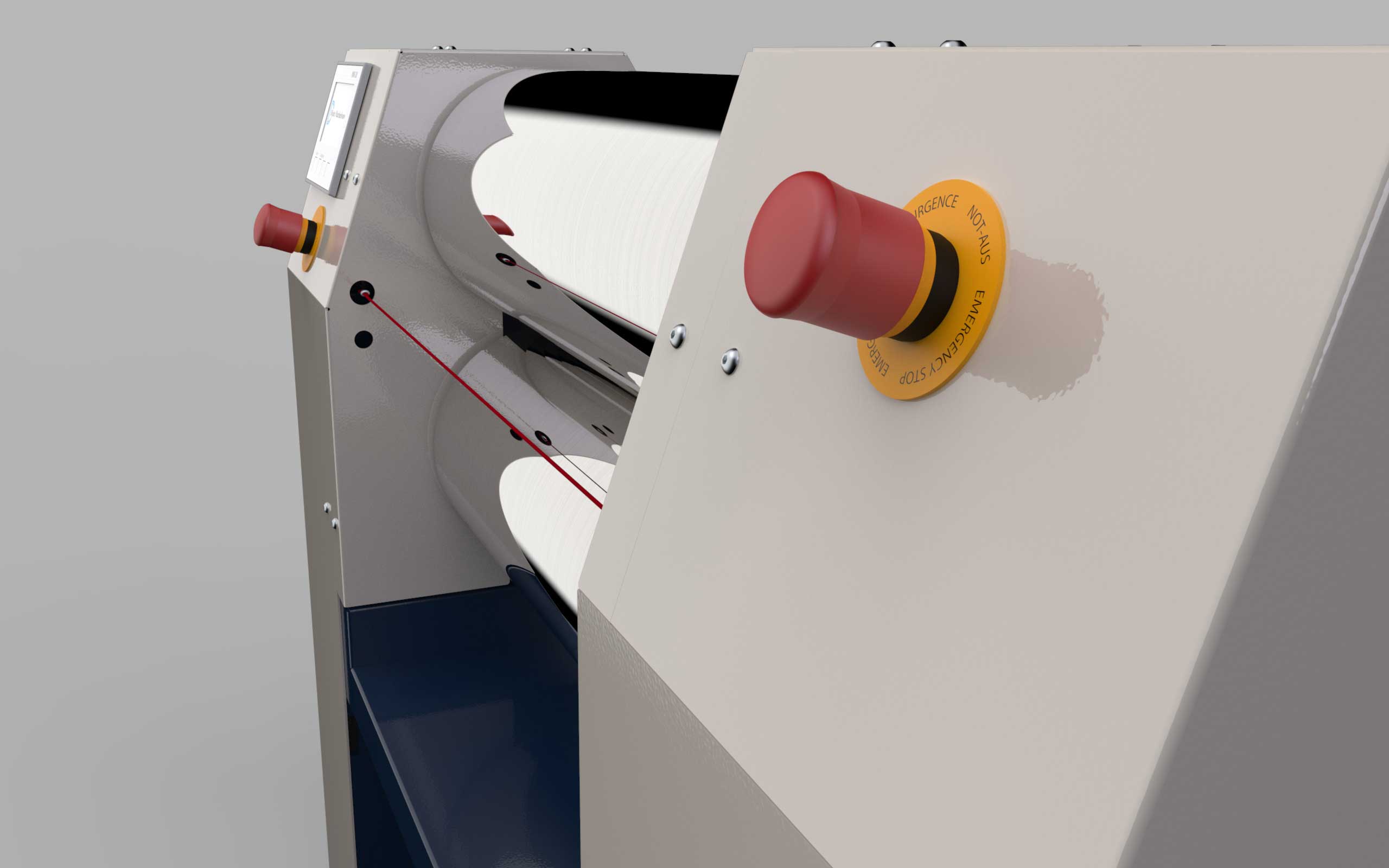

Emergency Stop Button and and Safety Cut-Out Cord
Emergency Stop Button
and Safety Cut-Out Cord

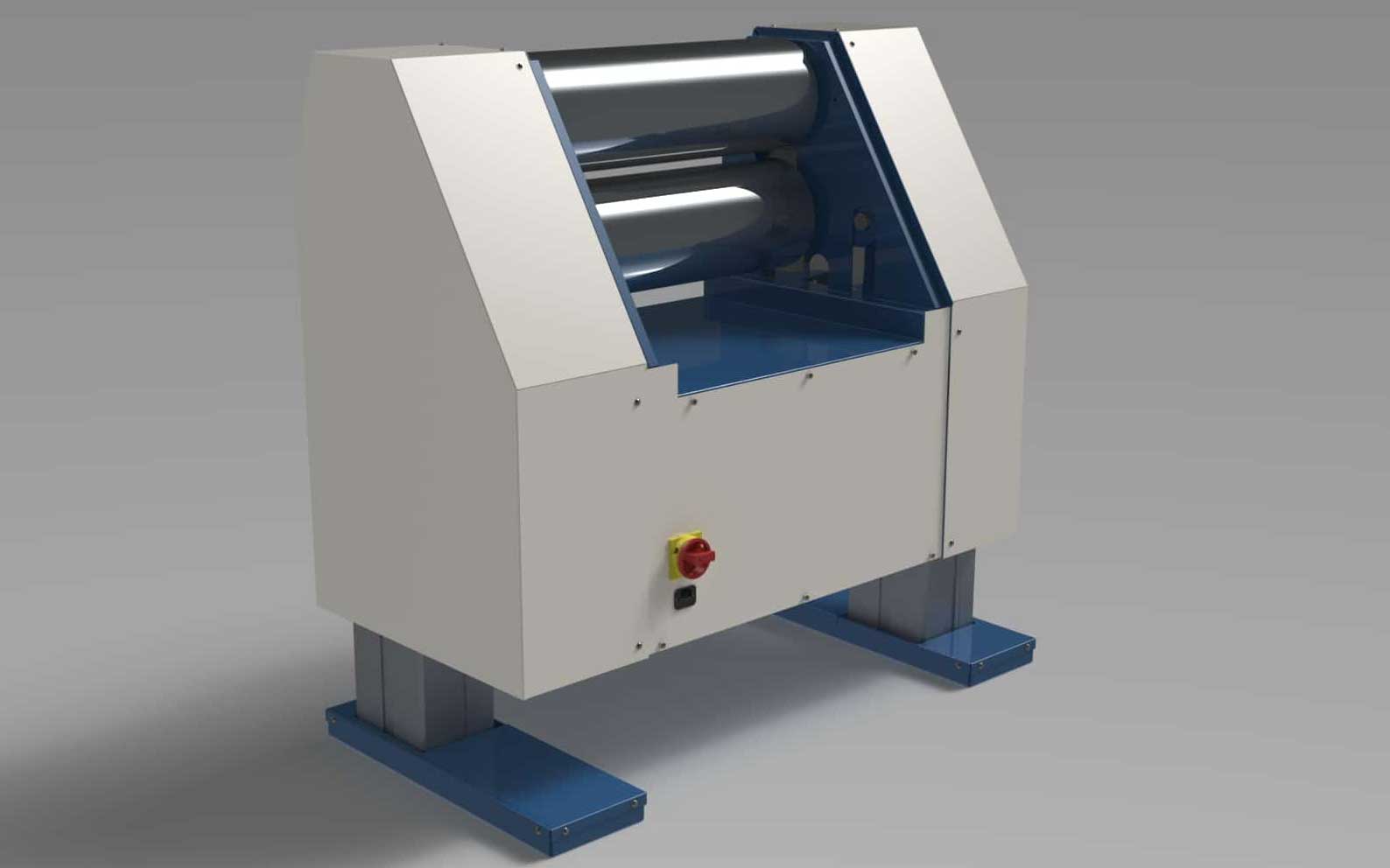

Rear View

Back View Adjustable Height - Electric Roll Mill
Height Adjustable Electric Roll Mill
Rear View.

TECHNICAL SPECIFICATION

Electrical connection: 230 Volt 1 Ph and earth (50/60 Hz).
Power consumption: 1.8 kW
Zero volt safety
Electrical height adjustment system
Standard workheight: variable from min. 1 to max. 1.35 mtr
Roll length: 60 cm
Roll diameter: 20 cm
GAP minimum - maximum: O - 25 mm
Rotation speed: variable 1 to 15 RPM
Machine weight: 350 kg
Dimensions: LxWxH (minimax): 0.6x1.2x1,1 /1.45 mtr



COLOUR

The standard frame of this machine is powder coated in RAL 5026 (dark blue metallic).
Plating of the machine is powder coated in RAL 9001.
The machines can be delivered in any color of your own preference (at an additional charge).

STANDARD EQUIPMENT

  • Electrical height adjustment system
  • Instruction manual
  • EU power supply cable
  • Safety wire in front of roller opening
  • Special chrome finished rolls

OPTIONAL EXTRAS

  • Can be executed with our full coverage safety system
  • 110 Volt 50/60 Hz instead of 230 Volt 50/60 Hz
  • 400 Volt 50/60 Hz instead of 230 Volt 50/60 Hz

Data Sheet PST-MW-20

PDF Data Sheet
PDF Download

PDF Brochure

Download - Roller Listing December 2023.pdf
Download - Roller Listing December 2023

Demonstration 1

Height Adjustable Vertical Electric Roll Mill video 1
Height Adjustable Vertical Electric Roll Mill Video

Demonstration 2

Height Adjustable Vertical Electric Roll Mill video 2
Height Adjustable Vertical Electric Roll Mill Video

Detail 1

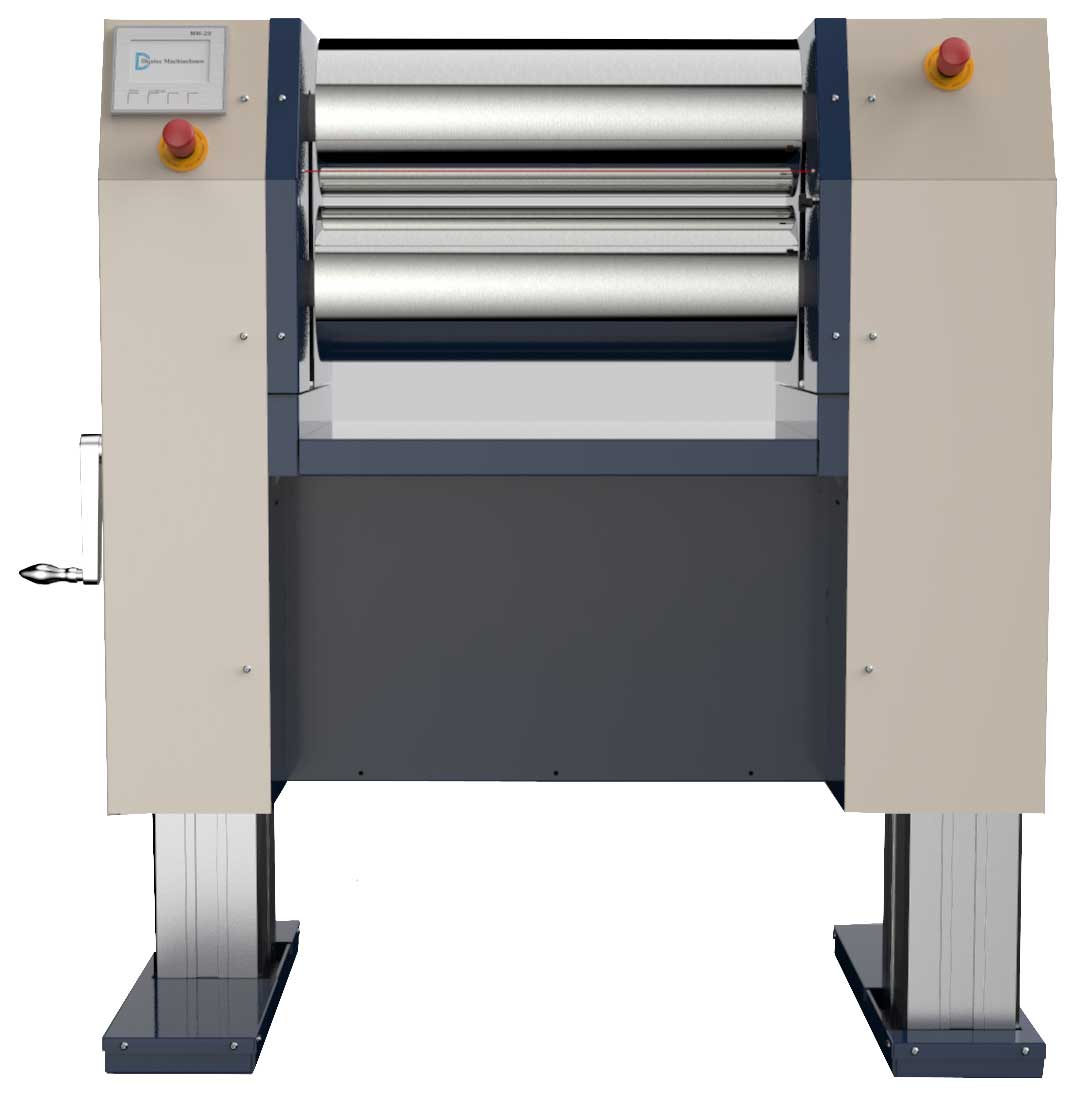

Height adjustable two roll mill - Extended
Height Adjustable Two Roll Mill - Extended

Detail 2

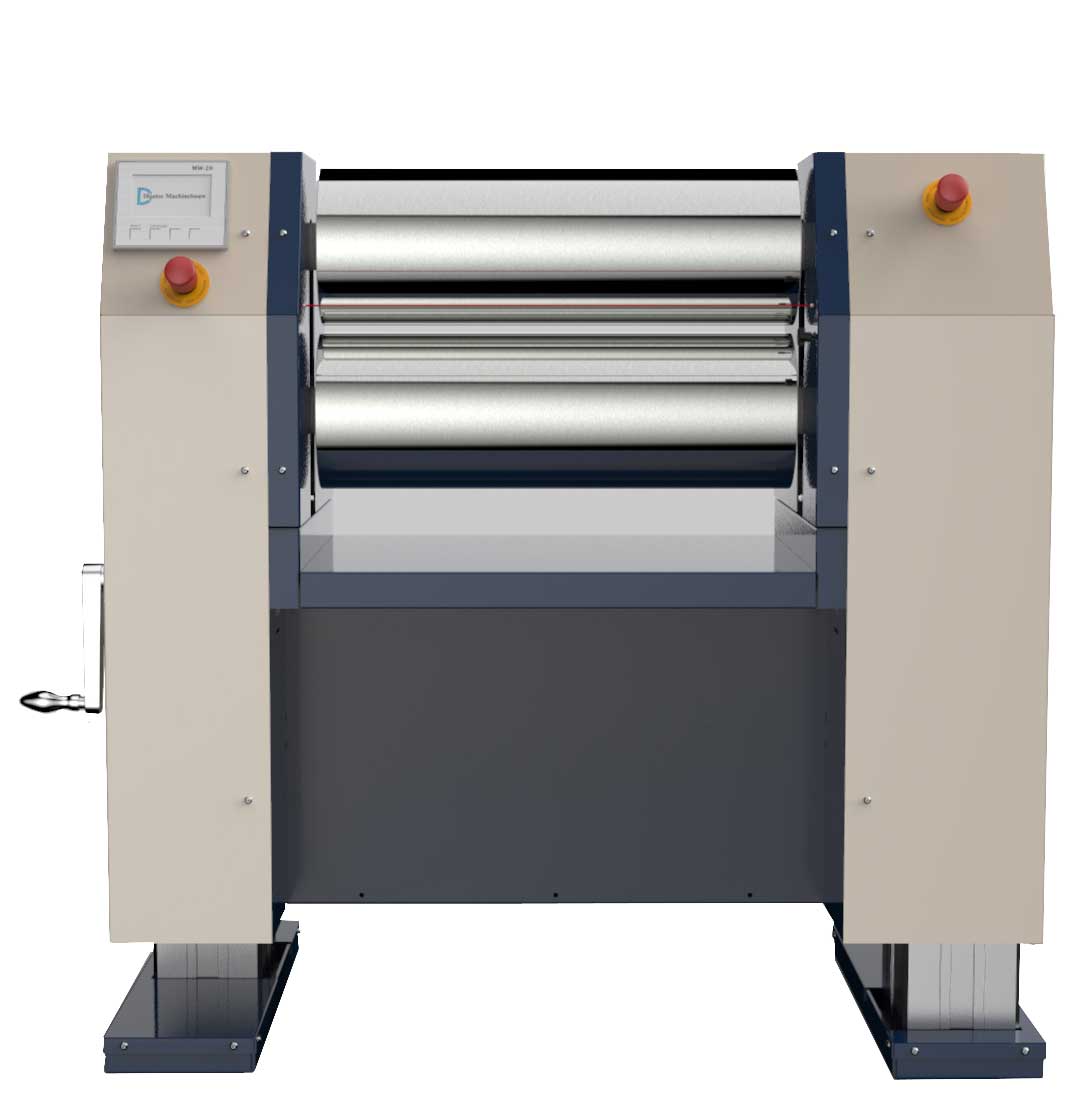

Height adjustable two roll mill - Lowered
